| 1x(4xAWG24)C – EtherNet Cat.5e | 1x(2xAWG19)C | |
| Conductor: stranded bare copper wire; nom. 0,20mm² – AWG24; nominal diameter 0,60mm. Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 ⇂ Insulation: PE compound; nominal diameter 1,45mm ⇂ Core Identification: white – yellow – blue – orange ⇂ Assembly: four cores stranded together ⇂ Screen: Al/PET tape (aluminium face outside); nominal optical coverage 100% + braid type; tin copper wire; nominal optical coverage 85% ⇂ Sheath: thermoplastic elastomer polyolefin based; nom. diameter 5,10mm; colour black similar RAL 9005 |
Conductor: stranded bare copper wire; nom. 0,75mm² – AWG19; nominal diameter 1,20mm. Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 ⇂ Insulation: PP compound; nominal diameter 1,90mm ⇂ Core Identification: black numbered 7 and 8 ⇂ Assembly: two cores twisted together ⇂ Screen: braid type; tin copper wire; nominal optical coverage 85% ⇂ Protective Tape: tape under and over screen |
|
| 4xAWG16 | Assembly | |
| Conductor: stranded bare copper wire; nom. 1,50mm² – AWG16; nominal diameter 1,55mm. Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 ⇂ Insulation: PP compound; nominal diameter 2,40mm ⇂ Core Identification: black numbered 1 to 3 + green/yellow |

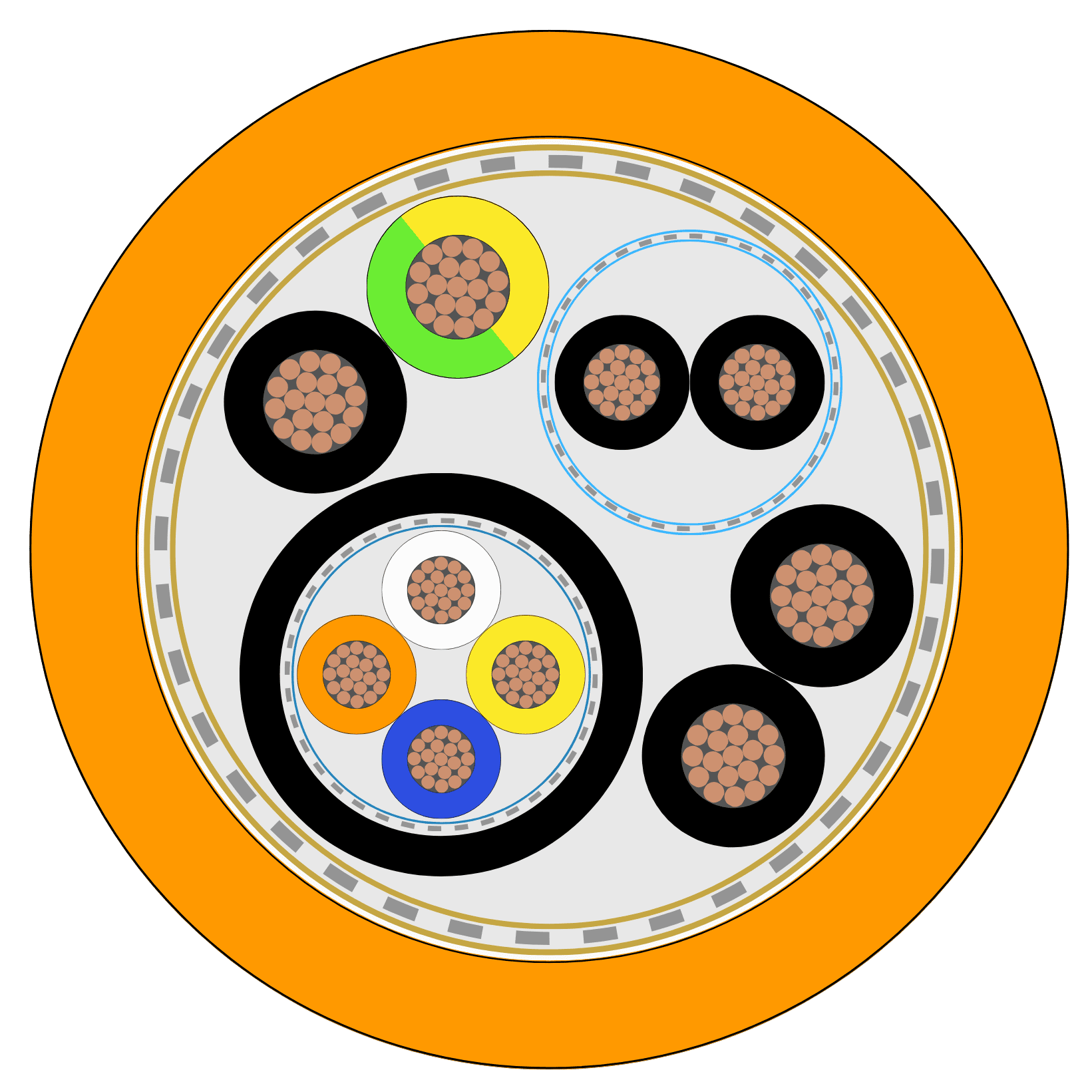

1x(4xAWG24)C + 1x(2xAWG19)C + 4xAWG16 stranded together around a central filler; some fillers could be used for a better roundness | |
| Screen | Protective Tape | |
| Braid type; tin copper wire; nominal optical coverage 85% | First: nonwovens tape (TNT) over total assembly Second: nonwovens tape (TNT) over total screen |
|
| Sheath | Electrical | |
| Outer sheath: PUR (ether base), 90 ShA; diameter 13,0 ±0,30mm Colour: orange similar RAL 2003; conform to UL Style 21223 |
Nominal voltage: 1000 Vrms Test voltage (AWG19): 3000 V x 1 min. Test voltage (AWG16): 4000 V x 1 min.Test voltage (C/S): 1500 V x 1 min. Electric resistance (AWG19): 27,7 Ω/Km (IEC 60344) Electric resistance (AWG16): 13,7 Ω/Km (IEC 60344) Insulation resistance: ≥ 1 GΩ x Km |
|
| Electrical (EtherNet Cat.5e) | Temperature | |
| Test voltage (AWG24): 1500 V x 1 min. Electric resistance (AWG24): 97,5 Ω/Km (IEC 60344) Characteristic impedance: 100Ω ±15Ω Capacitance: 55 pF/m ±15 pF/m Capacitance (core/screen): 105 pF/m ±15 pF/m Nominal inductance: 0,5 µH/m |
Operating temperature range, fixed: -40 °C to +80 °C Operating temperature range, flex: -30 °C to +80 °C |
|
| Bending Radius | Movement Data | |
| Bending radius, fixed: 5 x Ø Bending radius, flex: ≥7,5 x Ø Bending radius, flex: ≥15 x Ø |
Speed: 300 m/min. Acceleration: 50 m/sec² Torsion: ±30 °/m |
|
| Flame | Approval | |
| UL Cable Flame Test; CSA FT1; IEC 60332-1-2 | Oil-resistant: UL 758 UV-resistant: UL 1581 FCKW, Silicone and Pb free: yes |
ACURO16-24
| Code | ACURO16-24 |
|---|---|
| Cable Type | 4 x 1,5 + 1 x (2 x 0,75) + 1 x (4 x 0,20) |
| Ø mm | 13,0 |
| Tolerance | ±0,30 mm |
