| 4xAWG18 | 1x(2xAWG22)C | |
| Conductor: stranded bare copper wire (Class 6); nom. 1 mm² – AWG18; nominal diameter 1,35mm; VDE 0295. Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 ⇂ Insulation: polyolefin compound; nominal diameter 2,1mm ⇂ Core Identification: black numbered 1 to 3 + green/yellow |
Conductor: stranded bare copper wire (Class 6); nom. 0,34mm² – AWG22; nominal diameter 0,75mm; VDE 0295. Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 ⇂ Insulation: foam polyolefin compound; nominal diameter 2mm ⇂ Core Identification: white – blue ⇂ Assembly: two cores twisted to a pair with two solid fillers in gap ⇂ Screen: braid type; tin copper wire; nominal optical coverage 85% + bi-aluminized; nonwovens tape over braid screen ⇂ Protective Tape: tape over assembly + two tapes over tape screen |
|
| 1x(2xAWG19)C | Assembly | |
| Conductor: stranded bare copper wire (Class 6); nom. 0,75mm² – AWG19; nominal diameter 1,2mm; VDE 0295. Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 ⇂ Insulation: polyolefin compound; nominal diameter 2mm ⇂ Core Identification: black numbered 5 and 6 ⇂ Assembly: two cores twisted to a pair ⇂ Screen: Al/PET tape; aluminum face outside; optical coverage 100% + braid type; tin copper wire; nominal optical coverage 85% ⇂ Protective Tape: tape over screen |

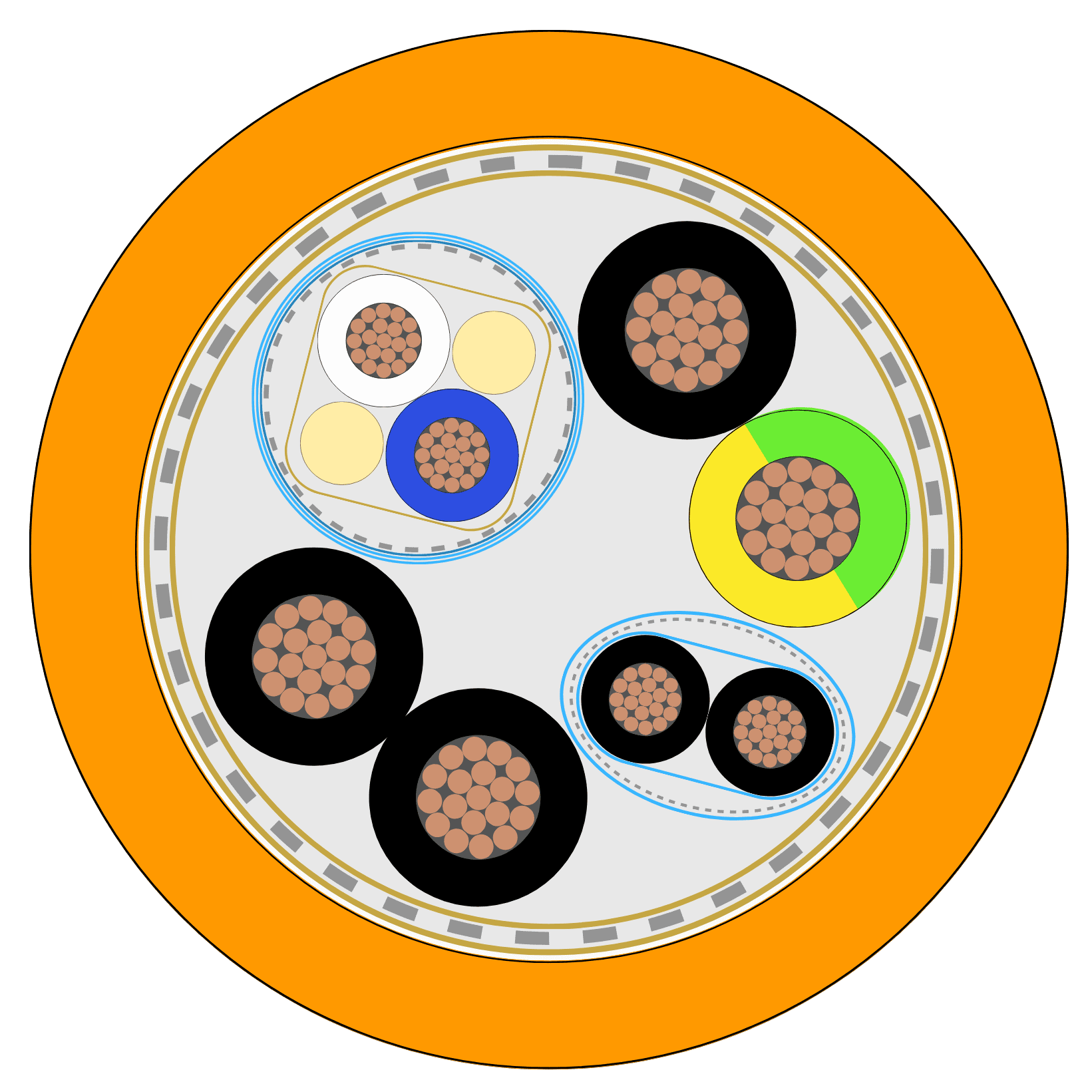

4x18AWG + 1x(2x22AWG)C + 1x(2x19AWG)C stranded together around a central fibrous filler; some fillers could be used for a better roundness | |
| Screen | Protective Tape | |
| Braid type; tin copper wire; nominal optical coverage 85% | Tape under and over total screen | |
| Sheath | Electrical | |
| Outer sheath: PUR (ether base), 90 ShA; diameter 11,6 ±0,4mm Colour: orange similar RAL 2003; conform to UL Style 21223 |
Voltage rating: 1000 Vrms Test voltage C/C (AWG18): 4000 Vac Test voltage C/C (AWG19): 3000 Vac Test voltage C/C (AWG22): 700 Vac Electric resistance (AWG18): 19,8 Ω/Km (IEC 60344) Electric resistance (AWG19): 27,7 Ω/Km (IEC 60344) Electric resistance (AWG22): 62,4 Ω/Km (IEC 60344) Mutual capacity (AWG22): 45 ±15 pF/m (800-1000Hz) Characteristic impedance (AWG22): 110 ±10 Ω |
|
| Temperature | Bending Radius | |
| Operating temperature range, fixed: -40 °C to +80 °C Operating temperature range, flex: -20 °C to +80 °C |
Bending radius, fixed: 5 x Ø Bending radius, flex: 7,5 x Ø |
|
| Movement Data | Flame | |
| Bending cycles: up to 5Mio (10 Mio stroke) | UL Cable Flame Test; CSA FT1; IEC 60332-1-2 | |
| Approval | ||
| Oil-resistant: UL 758 Halogen-free: CEI EN 60754-1 / VDE 0482-754-1 FCKW, Silicone and Pb free: yes |
BECKOFFDSL18
| Code | BECKOFFDSL18 |
|---|---|
| Cable Type | 4 x 1 + 1 x (2 x 0,34) + 1 x (2 x 0,75) |
| Ø mm | 11,6 |
| Tolerance | ±0,40 mm |
