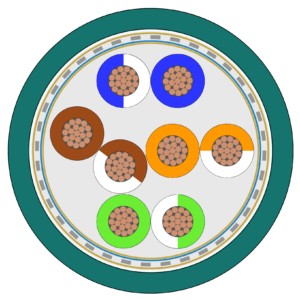

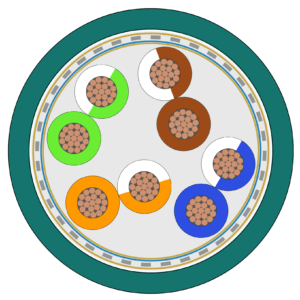

Conductor | Insulation | |
Stranded bare copper wire 0,16mm; nom. 0,14mm²- AWG26; nominal diameter 0,48mm Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 |
Foam polyolefin; nominal diameter 1,03mm | |
Core Identification | Assembly | |
Colour cores: orange/white polarized orange – green/white polarized green – brown/white polarized brown – blue/white polarized blue | Pairs: cores twisted in pairs (orange/white pol. orange – green/white pol. green – brown/white pol. brown – blue/white pol. blue) Total: pairs 4x(2xAWG26) stranded together |
|
Screen | Sheath | |
Pairs: each pair shielded with Al/PET tape (aluminium face outside); optical coverage Total: braid type; tin copper wire; nom. optical coverage 75% |
Outer sheath: special compound polyurethan based; 78 ShA; diameter 7,2 ±0,20 mm Colour: green similar RAL6026 |
|
Electrical | Temperature | |
Test voltage: 1000 Vdc Operating voltage: 50 Vrms (UL 30V) Electric resistance: 150,3 Ω/Km (IEC 60344) Impedance: 100 Ω ±15% Capacitance @1KHz: 47 pF/m Propagation velocity: 80% Propagation delay: <534 ns/100m Delay skew: <45 ns/100m Transfer impedance: 5 mΩ/m @10MHz Channel class D (Cat5e – 100MHz): max 77m Channel class E (Cat6 – 250MHz): max 72m Channel class EA (Cat6A – 500MHz): max 72m Channel class F (Cat7 – 600MHz): max 70m |
Operating temperature range, fixed: -40 °C to +80 °C Operating temperature range, flex: -10 °C to +80 °C |
|
Bending Radius | Movement Data | |
Bending radius, fixed: 7,5 x Ø Bending radius, flex: 10 x Ø |
Speed: 180 m/min Acceleration: 50 m/sec² Torsion: ± 90°/m; ± 180°/m; ± 270°/m Installation pulling force: 100 N |
|
Flame | Approval | |
UL Cable flame test; UL VW-1; CSA FT1; IEC 60332-1-2 | Oil-resistant: OIL RES I UV-resistant: UL1581 Silicone, Pb, Cd, Hg, FCKW free: yes ⇂ Accordance to: – IEC 61156-6 Cat.7 – ISO11801-2 Class F – ANSI/TIA 568-C.2 Cat.7 |
