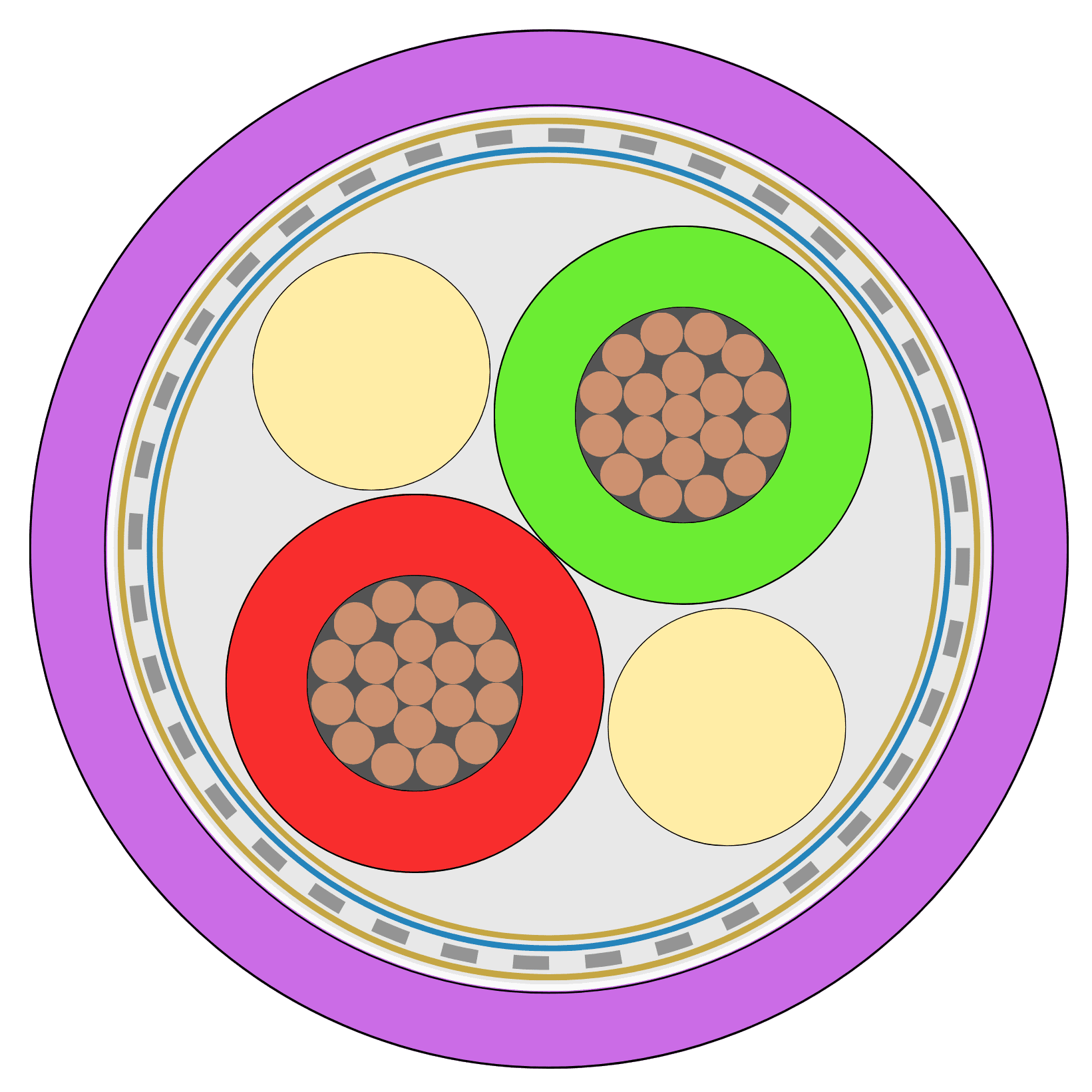

Conductor | Insulation | |
Stranded bare copper wire 0,13mm; nom. 0,25mm² – AWG24; nominal diameter 0,65mm Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 |
Foam polyolefin; nominal diameter 2,55mm | |
Core Identification | Assembly | |
Colour cores: green – red | Two cores stranded together with filler in gap | |
Screen | Protective Tape | |
First: Al/PET tape; aluminium face outside; optical coverage 100% Second: braid type; tin copper wire; nominal optical coverage 85% |
Tape over assembly and over screen | |
Sheath | Electrical | |
Outer sheath: PUR (ether base), hardness 90 ShA; diameter 8,10 ±0,20mm; conform to UL AWM Style 20233 Colour: violet similar RAL4001 |
Test voltage: 700 Vac Operating voltage: 300 Vrms Conductor resistance: 78,4 Ω/Km (IEC60344) Nominal impedance @1MHz: 150 Ω Nominal capacitance @1KHz: 29 pF/m |
|
Temperature | Bending Radius | |
Operating temperature range, fixed: -40 °C to +80 °C Operating temperature range, flex: -25 °C to +80 °C |
Bending radius, fixed: 7,5 x Ø Bending radius, flex: 12,5 x Ø |
|
Flame | Approval | |
UL Cable flame test; CSA FT1; IEC 60332-2 | Oil-resistant: UL 758 Halogen-free: CEI EN 60754-1 / VDE 0482-754-1 Silicone, Pb, Cd, Hg, FCKW free: yes |
