| 2x2xAWG24 | 2xAWG21 | |
| Conductor: stranded bare copper wire (Class 6); nom. 0,25mm² – AWG24; nominal diameter 0,62mm; VDE 0295. Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 ⇂ Insulation: PP compound; nominal diameter 1,15mm ⇂ Core Identificaton: red-black – grey-pink ⇂ Assembly: four cores twisted in two pairs with appropriate lay | Conductor: stranded bare copper wire (Class 6); nom. 0,50mm² – AWG21; nominal diameter 0,93mm; VDE 0295. Lay agree with UL 758 tab 5.9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 ⇂ Insulation: PP compound; nominal diameter 1,55mm ⇂ Core Identification: white – brown | |
| Assembly | Screen | |

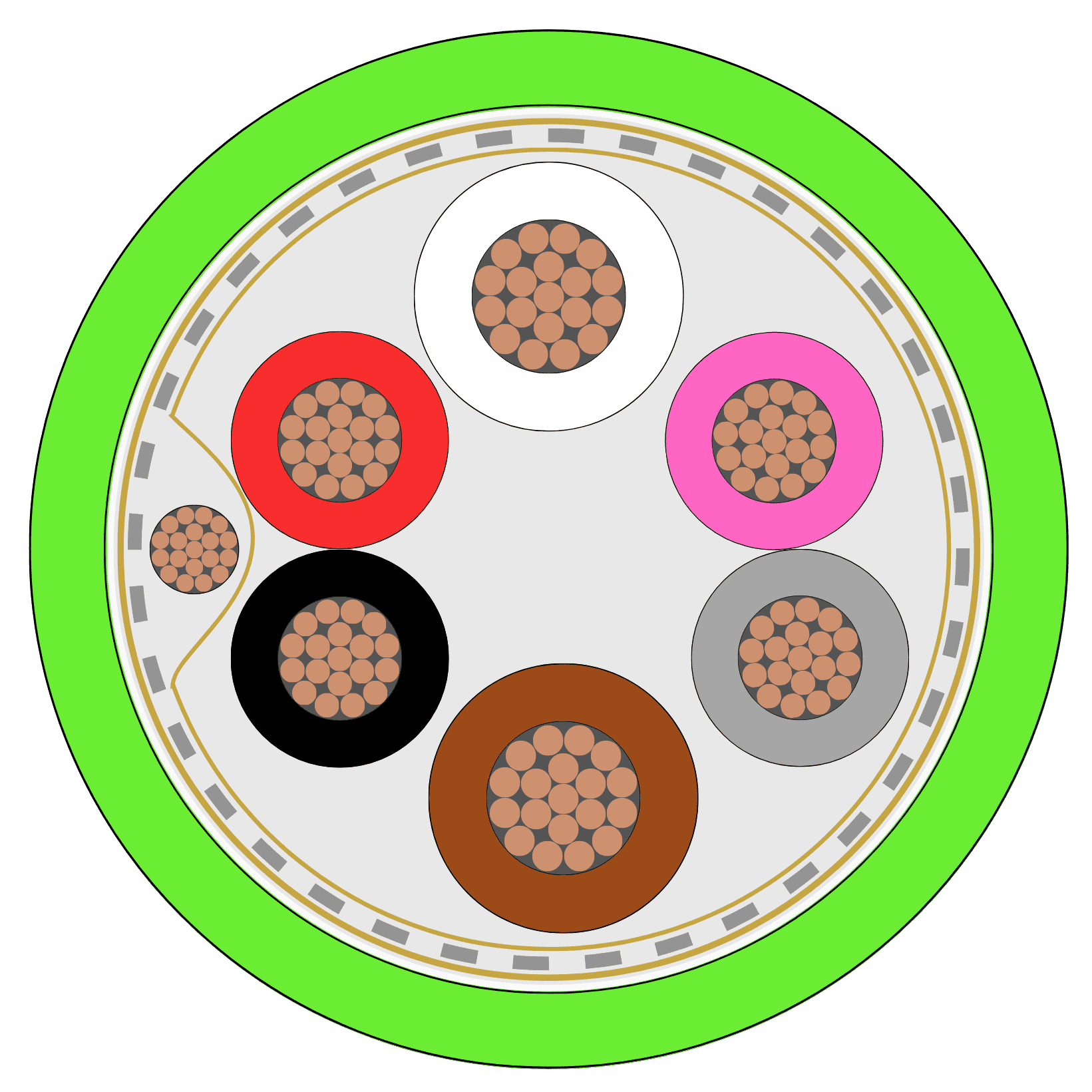

| 2x2xAWG24 + 2xAWG21 stranded together around a fibrous filler | Braid type; tin copper wire; nominal optical coverage 85% DW: tin copper; 0,25mm² / 24AWG; under braid screen | |
| Protective Tape | Sheath | |
| First: nonwovens tape (TNT) over total assembly Second: nonwovens tape (TNT) over total screen | Outer sheath: PUR (ether base), 90 ShA; diameter 7,30 ±0,20mm Colour: green; conform to UL Style 20233 | |
| Electrical | Temperature | |
| Rating voltage: 300 Vrms Test voltage (C/C): 1500 V x 1 min. Test voltage (C/S): 1200 V x 1 min. Electric resistance (AWG21): 39,9 Ω/Km (IEC 60344) Electric resistance (AWG24): 85,8 Ω/Km (IEC 60344) | Operating temperature range, fixed: -40 °C to +80 °C Operating temperature range, flex: -25 °C to +80 °C | |
| Bending Radius | Movement Data | |
| Bending radius, fixed: 5 x Ø Bending radius, flex: 7,5 x Ø | Speed (horizontal): 300 m/min Acceleration: 10 m/sec² Torsion: ±180 °/m (optimal recommended ±30 °/m) Bending cycles: 5 Mio (10 Mio bends) Installation pulling force: 100 N | |
| Flame | Approval | |
| UL Cable Flame Test; CSA FT1; IEC 60332-1-2 | Oil-resistant: UL 758 UV-resistant: UL 1581 Halogen-free: CEI EN 60754-1 / VDE 0482-754-1 FCKW, Silicone and Pb free: yes |
SSINK750GREEN
€0.00
| Code | SSINK750GREEN |
|---|---|
| Cable Type | 2 x 2 x 0,25 + 2 x 0,5 |
| Ø mm | 7,3 |
| Tolerance | ±0,20 mm |
