| Conductor | Insulation | |
| Stranded bare copper wire 0,20mm (Class 6); nom. 0,25mm² – AWG24; nominal diameter 0,62mm; VDE 0295 Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 | PVC; nominal diameter 1,1mm | |
| Core Identification | Assembly | |
| Colour cores: white – blue – black – brown | Four cores stranded together | |
| Sheath | Electrical | |
| Outer sheath: PVC, hardness 78 ShA; diameter 4,6 ±0,15mm; conform to UL AWM Style 2464 Colour: light gray similar RAL 7035 | Operating voltage: 300 Vrms Test voltage: 1000 V x 1 min Conductor resistance: 89,9 Ω/Km (IEC 60344) | |
| Temperature | Bending Radius | |
| Operating temperature range, fixed: -25 °C to +80 °C Operating temperature range, flex: -10 °C to +80 °C | Bending radius, fixed: 10 x Ø Bending radius, flex: 15 x Ø | |
| Flame | Approval | |
| UL Vertical flame test / CSA FT1 / IEC 60332-1-2 | Oil-resistant: ISO 6722 Silicone, Pb, Cd, Hg, FCKW free: yes |

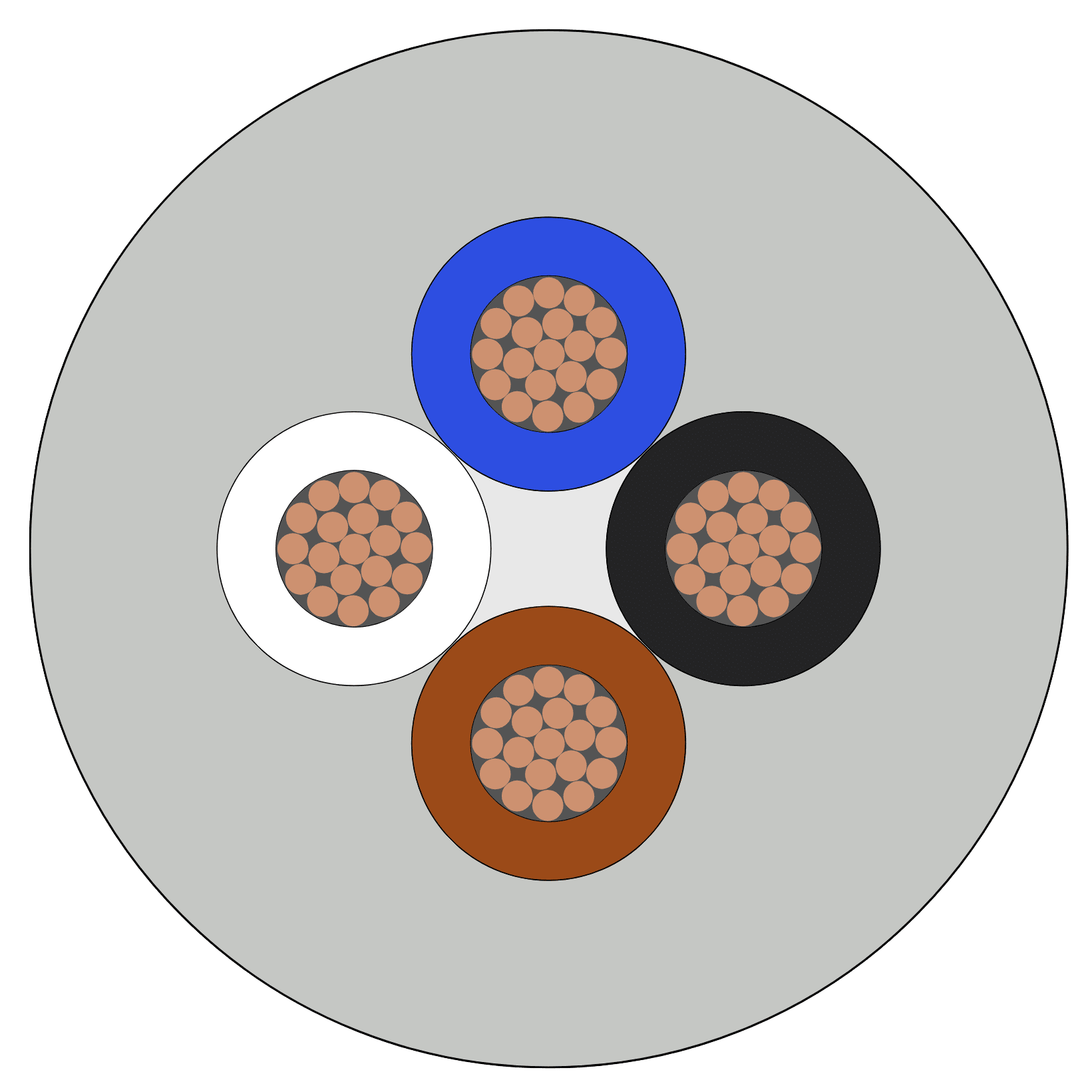

MOB4X0,25PVCSENS
| Code | MOB4X0,25PVCSENS |
|---|---|
| Cable Type | 4 x 0,25 |
| Ø mm | 4,6 |
| Tolerance | ±0,15 mm |
