| Conductor | Insulation | |
| Stranded tin copper wire 0,20mm; nom. 0,18mm² – AWG25; nominal diameter 0,60mm Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 | PP; nominal diameter 0,95mm | |
| Core Identification | Assembly | |

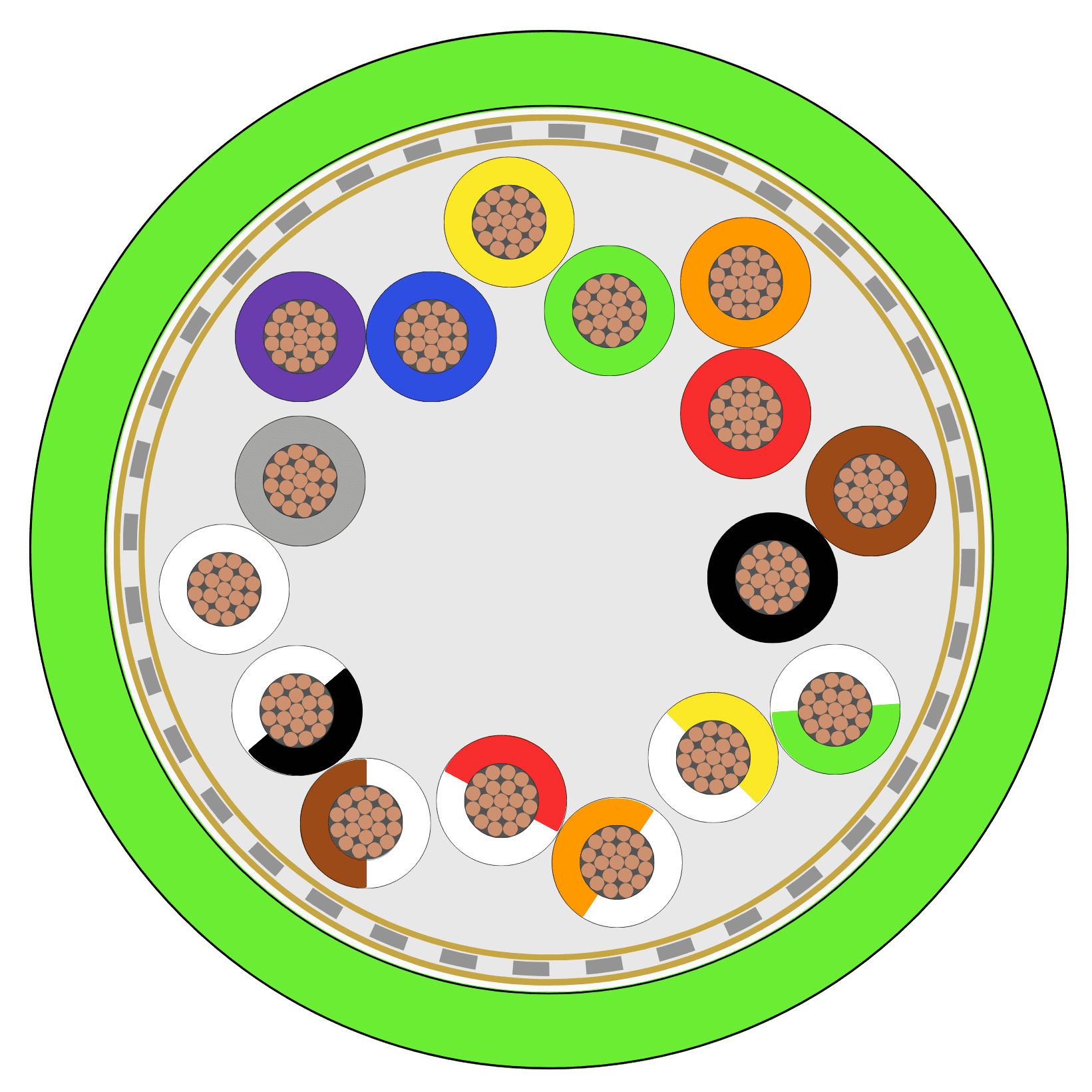

| Colour cores: white-grey – violet-blue – yellow-green – orange-red – brown-black – white/green-white/yellow – white/orange-white/red – white/brown-white/black | Pairs: sixteen cores stranded in eight cores Total: eight pairs stranded together around a central filler | |
| Screen | Protective Tape | |
| Braid type; tin copper wire 0,10mm; nominal optical coverage 85% | Nonwovens tape (TNT) under and over screen | |
| Sheath | Electrical | |
| Outer sheath: PUR (ether base), 90 ShA; diameter 8,50 ±0,30mm Colour: green similar RAL 6018; conform to UL AWM Style 20236 | Operating voltage: 30 Vrms (for electronic use) Test voltage C/C: 1000 Vrms x 1min Conductor resistance: 120 Ω/Km (IEC 60344) | |
| Temperature | Bending Radius | |
| Operating temperature range, fixed: -40 °C to +80 °C Operating temperature range, flex: -20 °C to +80 °C | Bending radius, fixed: 5 x Ø Bending radius, flex: 10 x Ø | |
| Movement Data | Flame | |
| Speed (horizontal): 180 m/min Acceleration: 20 m/sec² Torsion angle: ≤ ±30 °/m Bending cycles: 5 Mio (10 Mio stroke) | UL Cable flame test; CSA FT1; IEC 60332-1-2 | |
| Approval | ||
| Oil-resistant: UL 758 UV-resistant: yes Halogen-free: CEI EN 60754-1 / VDE 0482-754-1 Silicone, Pb, Cd, Hg, FCKW free: yes |
SSSIEMENS1BD11
€0.00
| Code | SSSIEMENS1BD11 |
|---|---|
| Cable Type | 8 x 2 x 0,18 |
| Ø mm | 8,5 |
| Tolerance | ±0,30 mm |
