Conductor | Insulation |

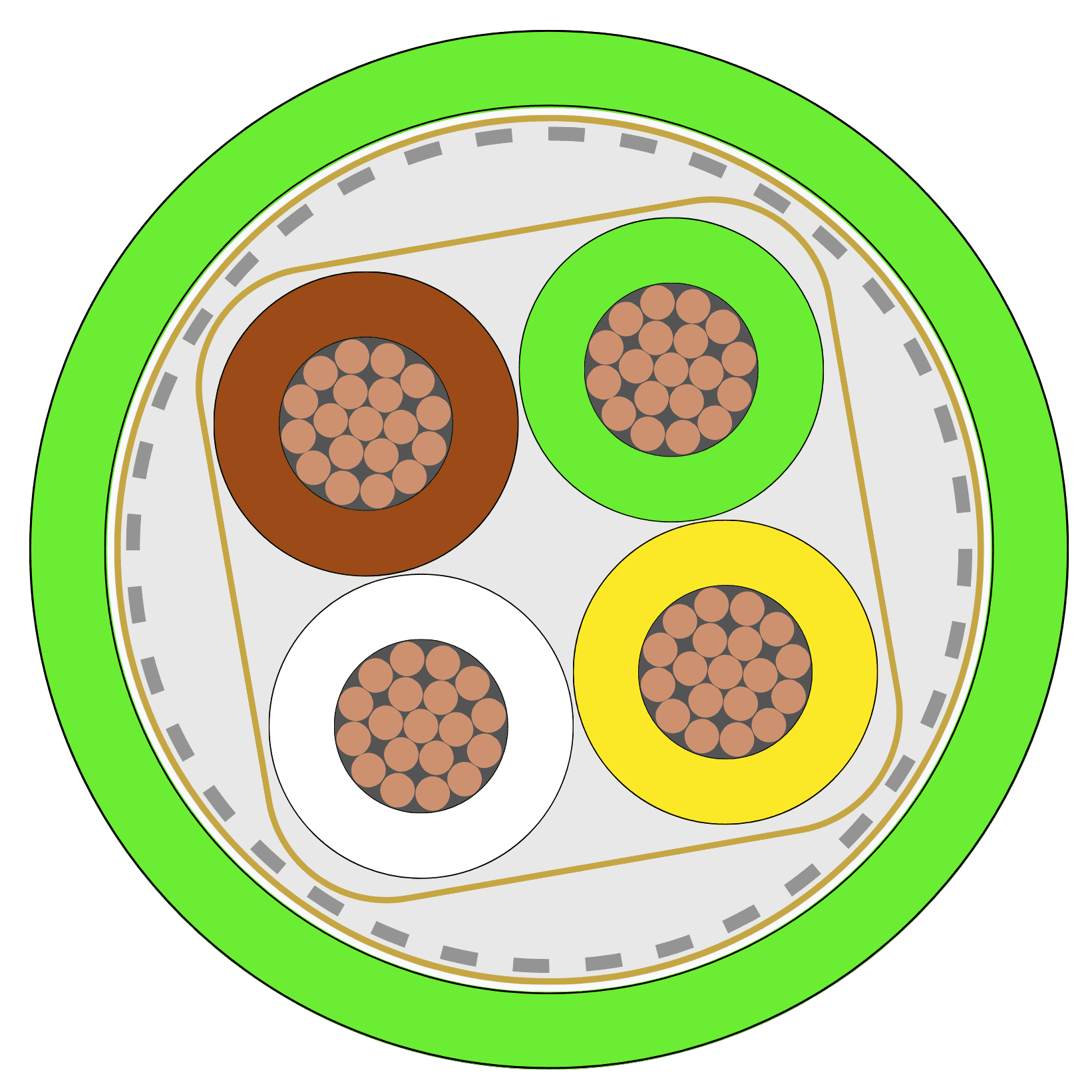

Stranded bare copper wire 0,10mm; nom. 0,34mm² – AWG22; nominal diameter 0,80mm; Cl.6 EN60228. Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58. |
PP; Nominal diameter 1,50mm; colour cores White-Brown-Green-Yellow. |
Assembly | Shield |
Four cores stranded together. | Braid type; Tin copper wire; Nominal optical coverage 90%. |
Protective Tape | Jacket |
Nonwovens tape (TNT) under and over shield. | PUR, hardness 90 ShA; diameter 7,0 ±0,20mm; colour Green similar RAL6018; conform to UL AWM Style 20233. |
Electrical | Physical |
Operating voltage: 300 Vrms Voltage test on cores: 1500 V x 1min Max conductor resistance: 61,6 Ω/Km (IEC60344) |
Operating temperature range: -40°C to +80°C (fixed) Operating temperature range: -25°C to +80°C (flex, free movement not continuous) Minimum bending radius: 5 x D (fixed) Minimum bending radius: 10 x D (flex, free movement not continuous) UV resistant: yes (UL758) Suitable for drag chain use: yes |
Chemical | Flame |
Oil resistant: yes (UL758) Hydraulic fluid, coolant emulsifier, alkali: resistant to a large extent Silicone, Pb, Cd, Hg, FCKW free: yes Halogen free: yes (CEI EN 60754-1 / VDE 0482-754-1) |
Flame resistant: UL Cable flame test; CSA FT1; IEC 60332-1-2 |
