Conductor | Insulation | |
Stranded bare copper wire 0,10mm (Class 6); Nom. 0,25mm² – AWG24; nominal diameter 0,60mm; VDE 0295 Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 |
PP compound; nominal diameter 1,10mm | |
Core Identification | Assembly | |

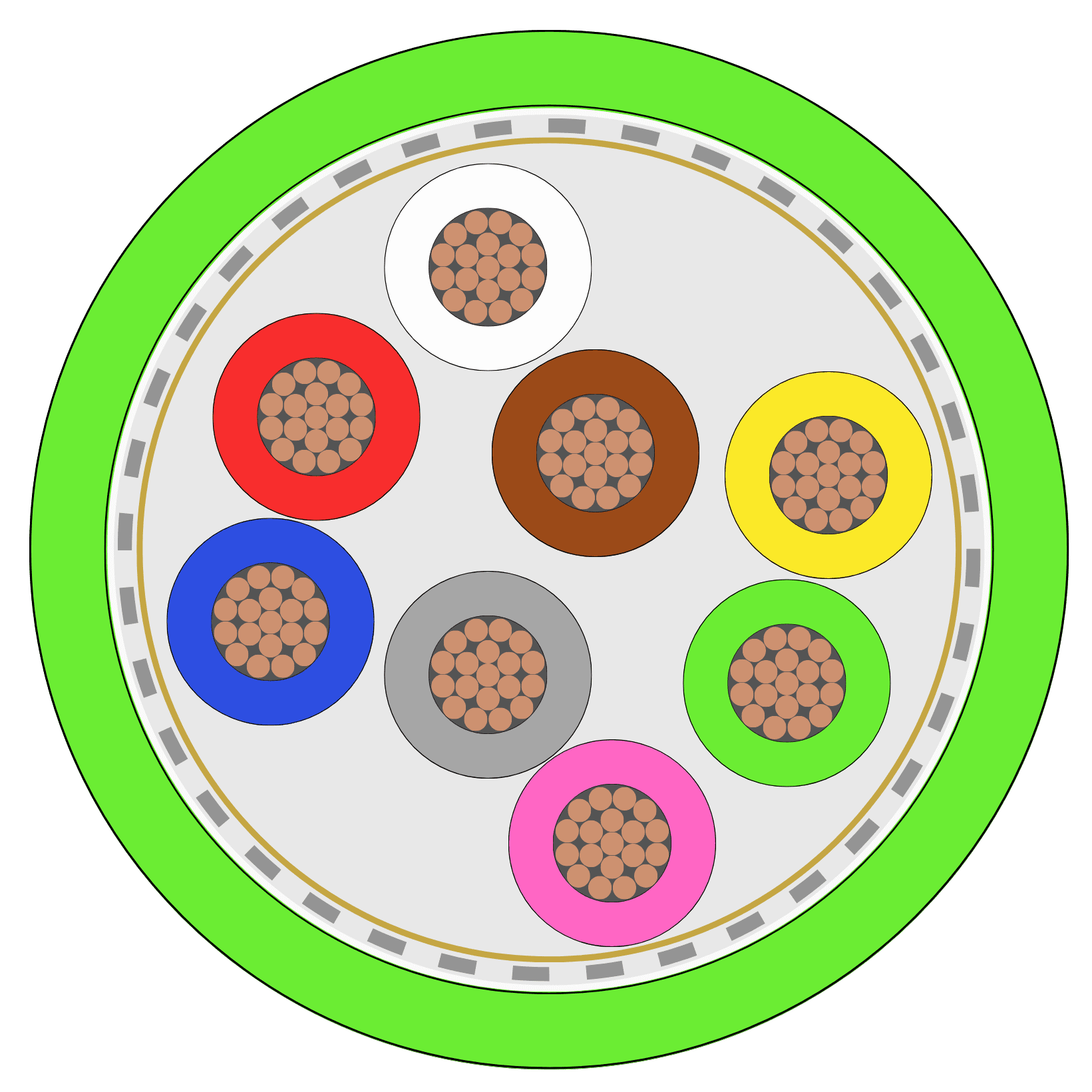

Colours acc. to DIN 47100 | Pairs: eight cores stranded in four pairs (white-brown – green-yellow – grey-pink – red-blue) Total: four pairs stranded together around a central filler; some filler could be used for a better roundness |
|
Screen | Protective Tape | |
Braid type; tin copper wire 0,10mm; nominal optical coverage 85% | Nonwovens tape (TNT) under and over screen | |
Sheath | Electrical | |
Outer sheath: PUR (ether base); 90ShA; diameter 7,20 ±0,25mm Colour: green similar RAL 6018; conform to UL AWM Style 20236 |
Operating voltage: 300 Vrms Test voltage: 2000 Vac Conductor resistance: 85,8 Ω/Km (IEC 60344) |
|
Temperature | Bending Radius | |
Operating temperature range, fixed: -40 °C to +80 °C Operating temperature range, flex: -25 °C to +80 °C |
Bending radius, fixed: 4 x Ø Bending radius, flex: 9,5 x Ø |
|
Movement Data | Flame | |
Speed: 300 m/min Acceleration: 50 m/sec² Torsion: max ±180 °/m; optimal-recommended ±30 °/m Bending cycles: 10 Mio (20 Mio bends) |
UL Cable flame test; CSA FT1; IEC 60332-1-2 | |
Approval | ||
Oil-resistant: UL 758 UV-resistant: yes Halogen-free: CEI EN 60754-1 / VDE 0482-754-1 Silicone, Pb, Cd, Hg, FCKW free: yes Microbe-resistant: yes Hydrolysis-resistant: yes Hydraulic fluid, coolant emulsifier, alkali: resistant to large extent |
