Conductor | Insulation |
Stranded bare copper wire 0,10mm; Nom. 0,34mm² – AWG22; nominal diameter 0,80mm; Cl.6 VDE0295. Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58. |
Polyolefin; Nominal diameter 1,27mm; Colour cores as for DIN47100. |
Total Assembly | Shield |

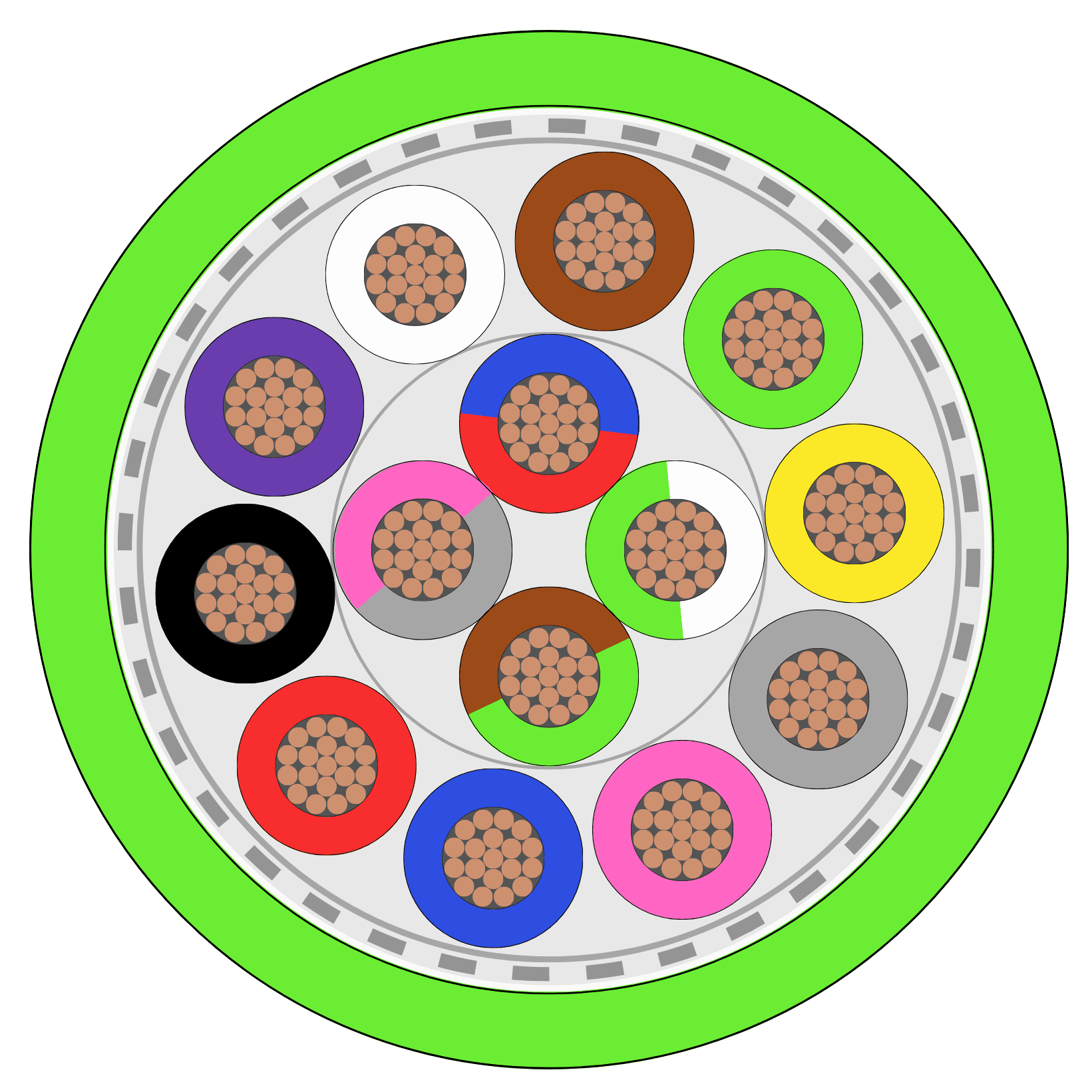

Fourteen cores stranded in two layers. | Braid type; Tin copper wire; nominal optical coverage 85% |
Protective Tape | Jacket |
Tape over every layer and over shield. | PUR (ether base); hardness 92 ShA; diameter 8,60 ±0,25mm; colour Green similar RAL6018; conform to UL AWM Style 20233 |
Electrical | Physical |
Operating voltage: 300 Vrms Voltage test: 2000 Vac Max conductor resistance: 65,3 Ω/Km (IEC60344) |
Operating temperature range: -40°C to +80°C (fixed) Operating temperature range: -25°C to +80°C (flex) Minimum bending radius: 5 x D (fixed) Minimum bending radius: 10 x D (flex) |
Chemical | Flame |
Oil resistant: yes (UL758) Silicone, Pb, Cd, Hg, FCKW free: yes Halogen free: yes (CEI EN 60754-1 / VDE 0482-754-1) |
Flame resistant: UL Cable flame test; CSA FT1; IEC 60332-1-2 |
Movement Data @20°C | |
Bending cycles: up to 5 Mio (10 Mio Stroke) Max speed: 300 m/min Max Acceleration: 10 m/sec² |
