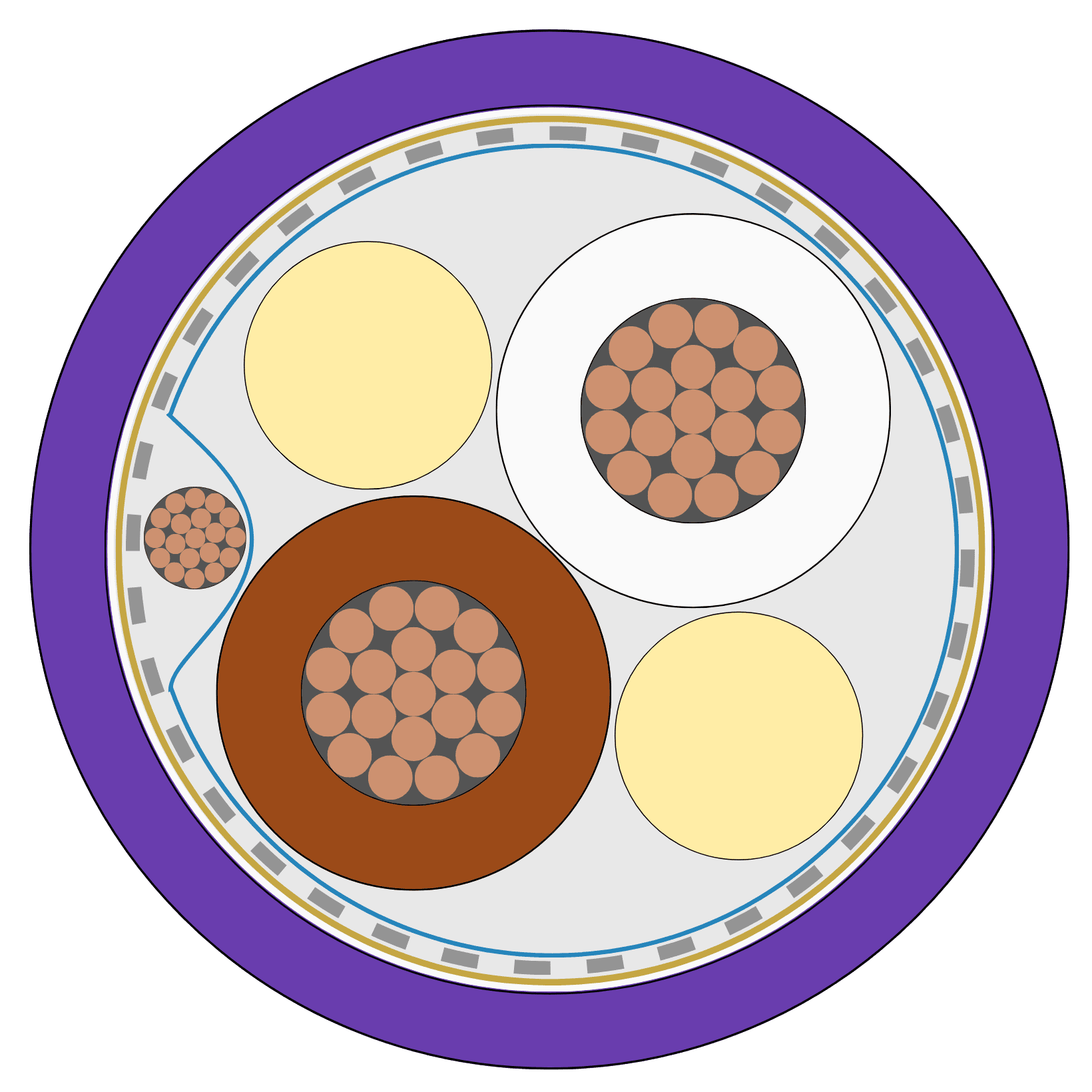

Conductor | Insulation | |
Stranded bare copper wire (Class 6 VDE0295); nom. 0,34mm² – AWG22; nominal diameter 0,80mm Conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 |
Foam PE (with internal and external skin); nominal diameter 2,10mm | |
Core Identification | Assembly | |
Colour cores: white – brown | Two cores twisted together with fillers in gap | |
Screen | Protective Tape | |
First: Al/PET tape over assembly (Aluminium face outside); optical coverage 100% Second: braid type; tin copper wire 0,10mm; nominal optical coverage 80% Drain wire: stranded sin copper wire 0,34mm² (AWG22); DW under braid screen |
Nonwovens tape (TNT) over total shield | |
Sheath | Electrical | |
Outer sheath: PUR, hardness 90 ShA; diameter 6,40 ±0,20mm Colour: violet similar RAL4001 |
Test voltage: 1000 V x 1min Operating voltage: 30 V Conductor resistance: 61,6 Ω/Km Impedance: 120 Ω ± 10% Nominal Capacitance @1KHz: 40 pF/m |
|
Temperature | Bending Radius | |
Operating temperature range, fixed: -40 °C to +80 °C Operating temperature range, flex: -25 °C to +80 °C |
Bending radius, fixed: 4 x Ø Bending radius, flex: 15 x Ø |
|
Flame | Approval | |
IEC 60332-1-2 | Oil-resistant: ISO6722 Halogen-free: CEI EN 60754-1 / VDE 0482-754-1 Silicone, Pb, FCKW free: yes |
