Conductor | Insulation | |
Stranded bare copper wire 0,10mm; nom. 0,25mm² – AWG24; nominal diameter 0,62mm Lay agree with UL 758 tab 5,9; conform to EN 13602 – ETP1, DIN 40500 E-Cu 58 | Foam polyolefin; nominal diameter 1,3mm | |

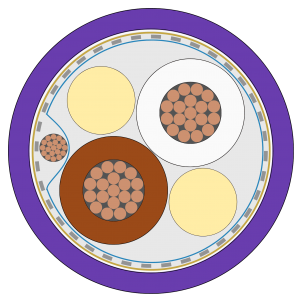

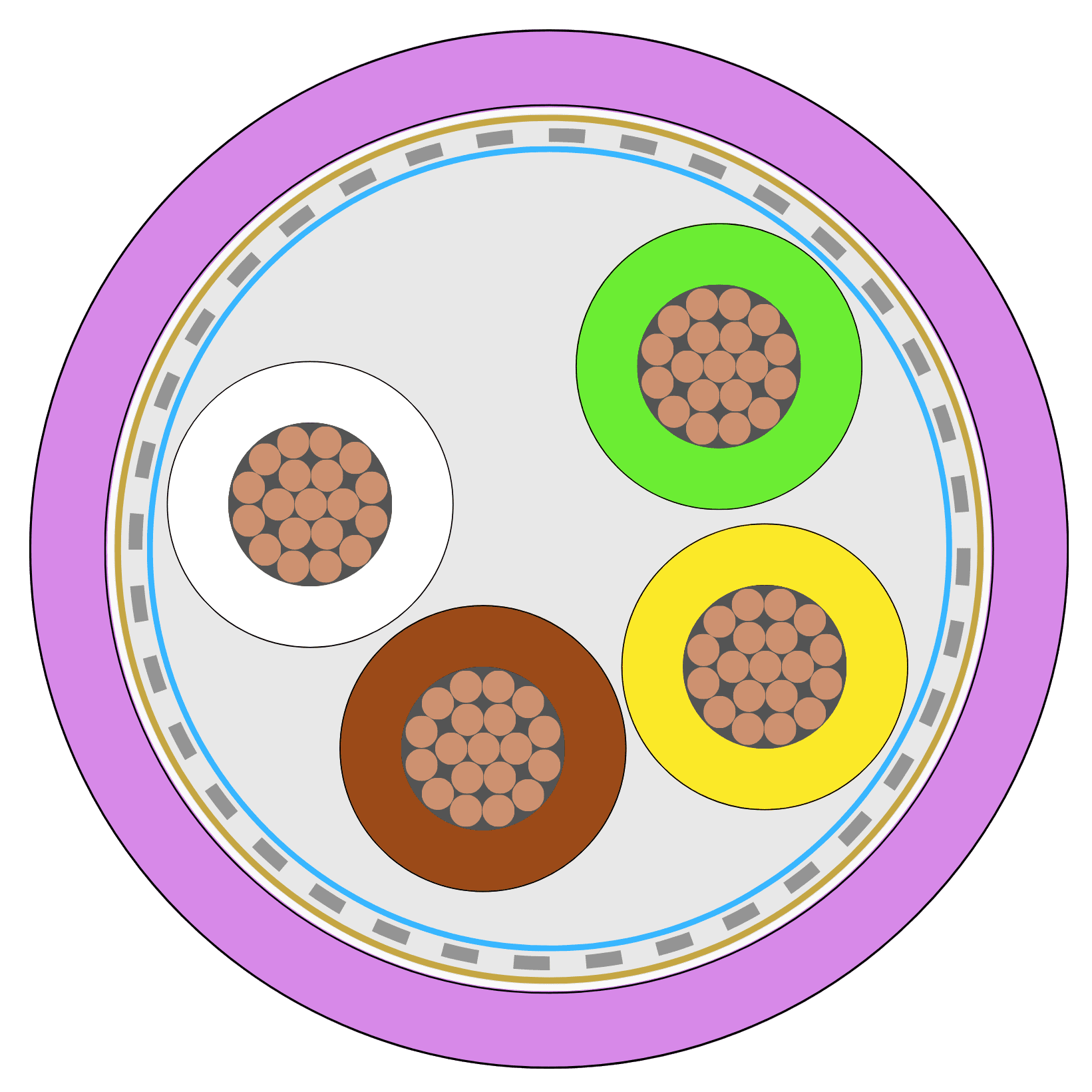

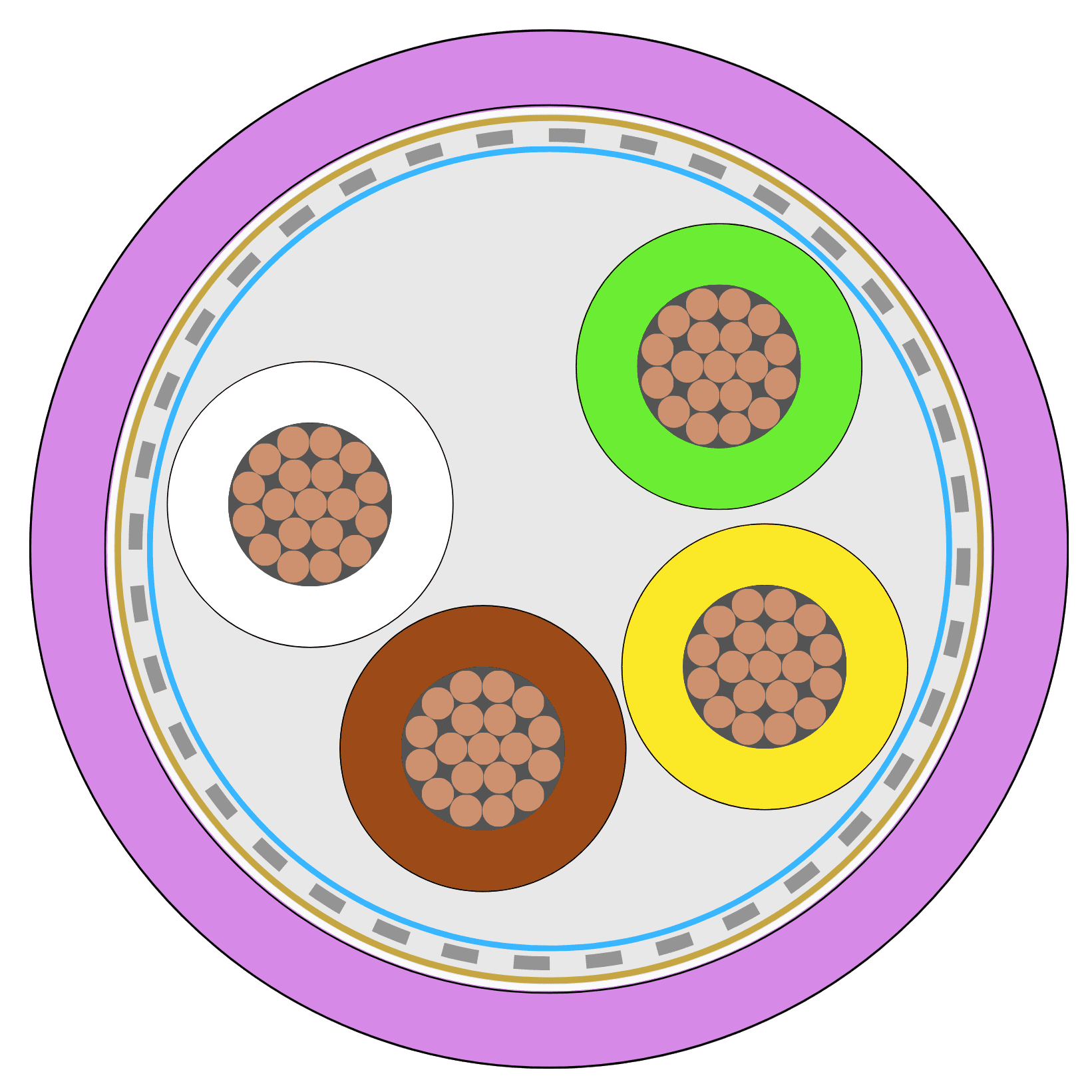

Core Identification | Assembly | |
Colour cores: white – brown – green – yellow | Pairs: four cores twisted in two pairs Total: two pairs stranded together with fillers in gap | |
Screen | Protective Tape | |
Braid type; tin copper wire; nominal optical coverage 85% | Tape under and over screen | |
Sheath | Electrical | |
Outer sheath: PUR (ether base), hardness 90 ShA; diameter 6,60 ±0,20mm; conform to UL AWM Style 20236 Color: violet similar RAL4001 | Test voltage: 700 Vac Operating voltage: 30 Vrms Conductor resistance: 85,8 Ω/Km (IEC60344) Nominal impedance @1MHz: 120 Ω Nominal capacity @1KHz: 60 pF/m | |
Temperature | Bending Radius | |
Operating temperature range, fixed: -40 °C to +80 °C Operating temperature range, flex: -25 °C to +80 °C | Bending radius, fixed: 7,5 x Ø Bending radius, flex: 12,5 x Ø | |
Flame | Approval | |
UL Cable flame test; CSA FT1; IEC 60332-1-2 | Oil-resistant: UL758 Halogen-free: CEI EN 60754-1 / VDE 0482-754-1 Silicone, Pb, Cd, Hg, FCKW free: yes |
